Magento Plugin Overview & Implementation

The Paystand plugin for Magento enables merchants to accept digital payments directly through the Magento checkout experience. It provides a seamless and secure way for customers to pay while ensuring merchants benefit from lower-cost payment methods.

Key Features

• Embedded Checkout Experience
  The Paystand checkout is fully embedded in the Magento UI and can be customized to include your company’s logo and background color.
• Flexible Payment Options
  It supports both zero-fee payment methods (bank transfers), credit card payments, and ACH. Customers can check out as guests or while logged into their accounts.
• ERP Compatibility
  The integration supports syncing of Magento orders and Paystand payments with NetSuite for end-to-end ERP reconciliation (if applicable).
• Real-Time Order Updates
  Orders in Magento automatically update upon successful payment. This relies on proper webhook configuration.
• Webhooks Required
  Webhooks must be configured correctly in Paystand to ensure order statuses are updated in Magento. Without them, payment updates will not reflect in the store.
• Fees Handling
  Payment processing fees are included in the Paystand transaction total and displayed in the Magento UI.
• Payment Tokenization
  Magento integration supports storing payment methods as a logged in user.
• Logged in and Guest users
  Supports two checkout experiences depending on whether your customer is logged into their store account or checking out as a guest. Each flow offers a slightly different set of features.

Magento 2 Guide — Install & Configure Paystand Payment Gateway

This page explains how to install, configure, and operate the Paystand Magento 2 plugin, including webhook setup, Fees & Incentives configuration, and optional NetSuite reconciliation.

1. Setup Requirements

To implement the Paystand plugin, you will need:

• Magento 2.4.x (tested up to 2.4.7)

• Paystand Account with API access

• Magento Developer (Paystand does not install or host your Magento store)

• NetSuite Account (Optional) for ERP reconciliation

Before You Begin

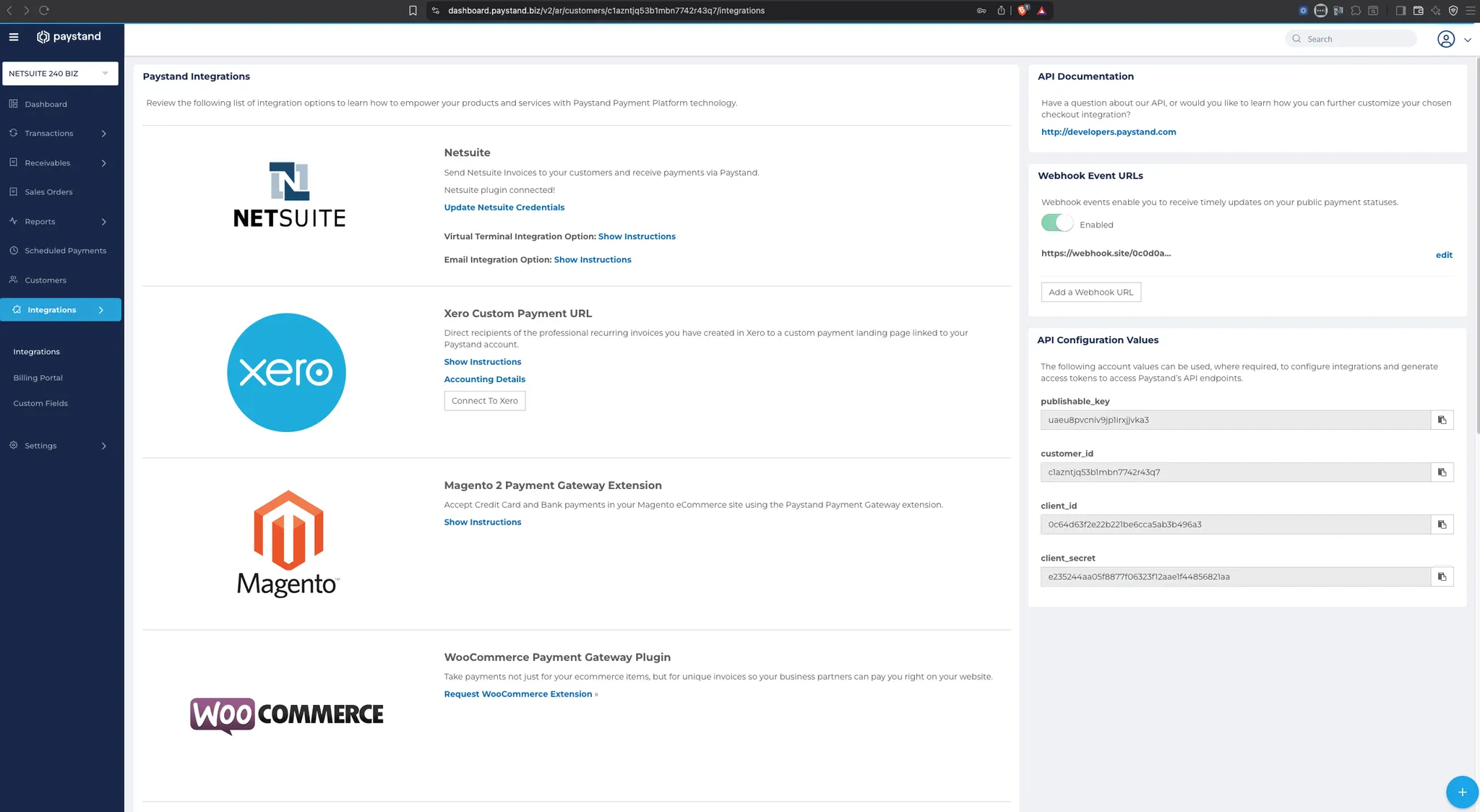

• Ensure you have API keys from Paystand Dashboard → API Configuration Values

• Confirm you have SSH access to your Magento application

• Ensure Composer is available on your server

1) Install the module (run from Magento root)

Run the following commands from your Magento root directory:

composer config repositories.paystand-magento2 git <https://github.com/paystand/paystand-magento2.git>
composer require paystand/paystandmagento:dev-master#3.6.1
composer update
php bin/magento setup:upgrade

2) Configure Paystand in Magento Admin

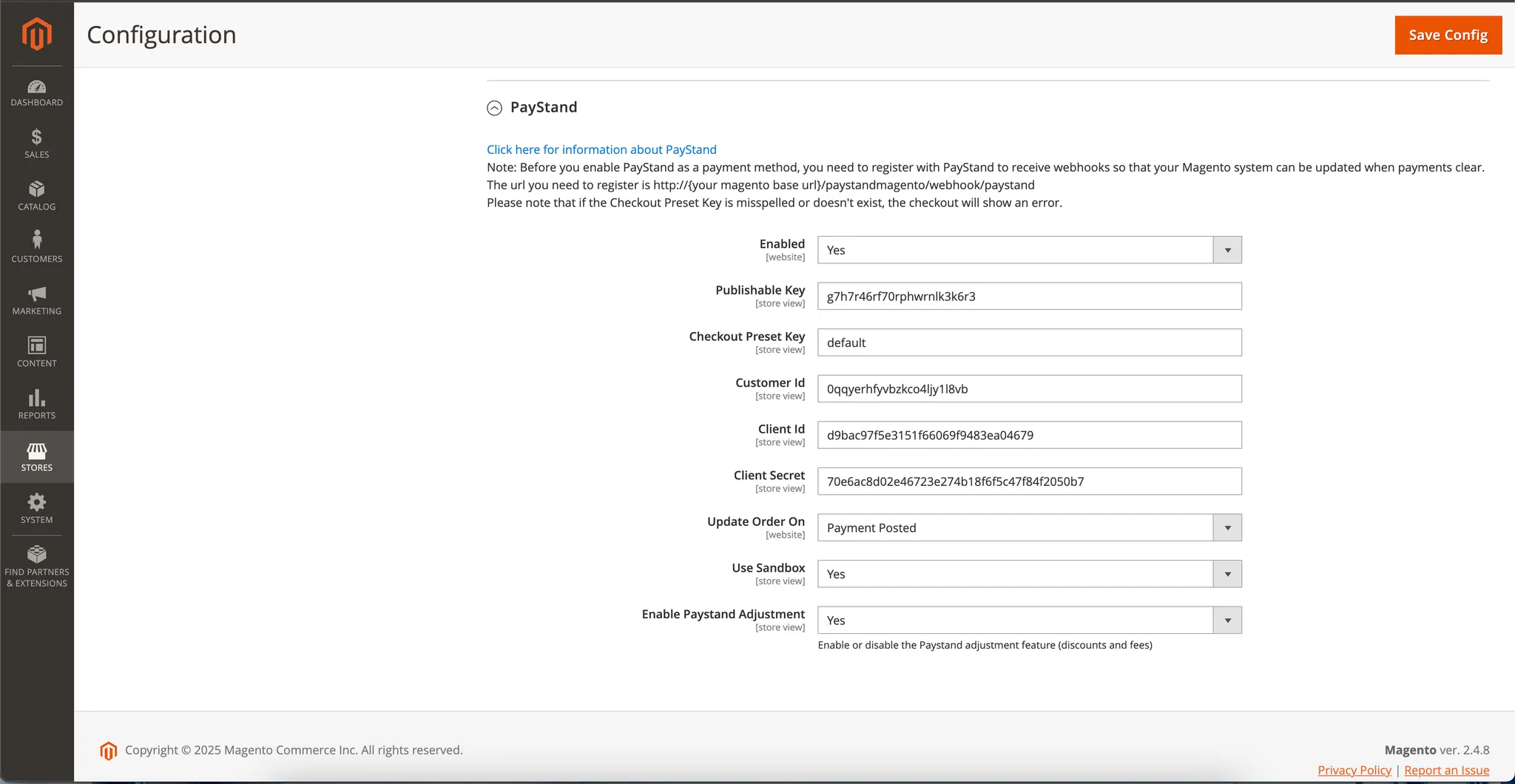

1. Go to the Magento Admin Panel → Stores → Configuration → Sales → Payment Methods → Paystand



2. Enter your credentials (including the publishable_key) from the Paystand Dashboard → API Configuration Values
3. Click Save Config

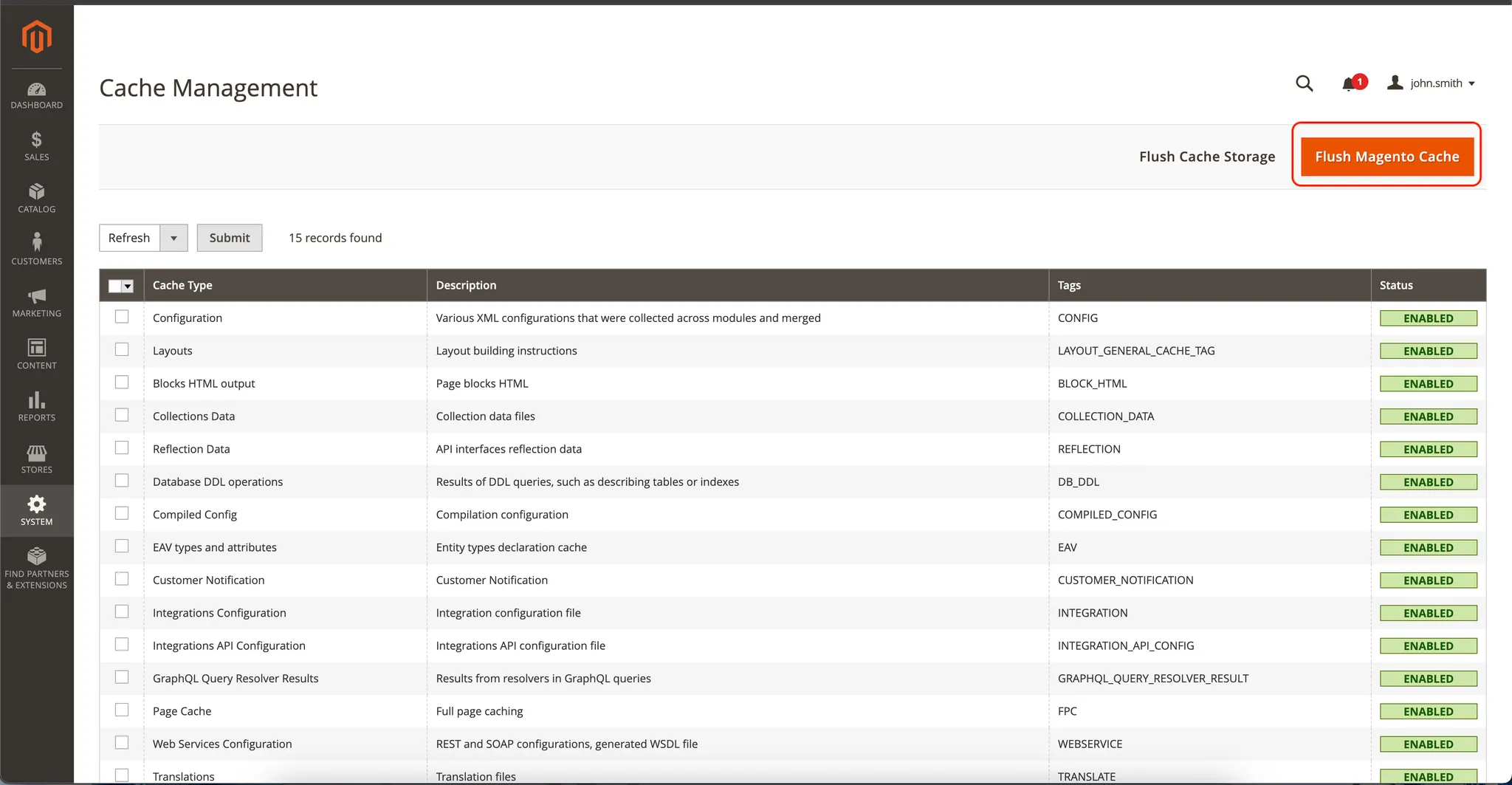

4. Flush Magento cache (Admin: System → Cache Management or CLI: php bin/magento cache:flush)

   This enables Paystand as a payment method in your Magento checkout.

3) Enable a webhook event URL (payment status updates)

Webhooks are mandatory for accurate order posting. Without them, Magento will not receive payment confirmations.

1. Locate your Magento 2 base URL

2. Use this webhook URL format:

   https://{your magento base url}/paystandmagento/webhook/paystand

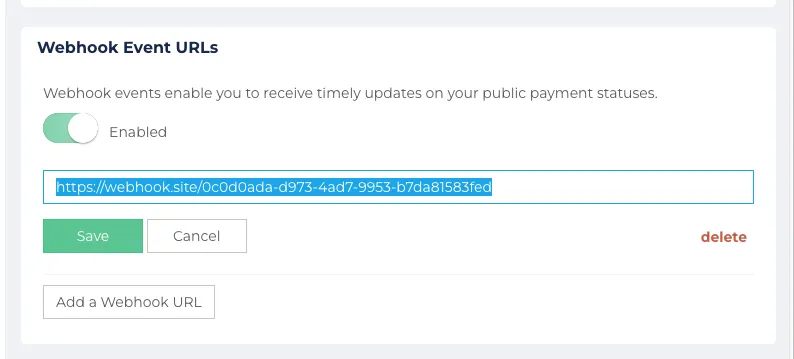

3. In Paystand Dashboard, go to Webhook Event URLs and click Add a Webhook event URL
4. Paste the URL (replace {your-magento-base-url} with your real domain) and click Save

When a payment succeeds, Paystand sends a webhook event that updates the corresponding Magento order.

4) Assign Convenience Fee / Incentive plan (Preset URL Key)

If you use Paystand’s Fees & Incentives engine:

1. In Paystand Dashboard, copy your Preset URL Key
   (Dashboard → Fees & Incentives)

2. In Magento Admin → Paystand configuration, paste it into:
   Checkout preset key

3. Save configuration

This ensures Magento applies the correct incentives, surcharges, or method restrictions at checkout.

6. Magento → Paystand Payment Flow

Base Checkout Flow (All Merchants)

1. Customer begins checkout → Magento creates a QuoteID

2. Paystand embedded checkout renders

3. Customer completes payment

4. Paystand returns a Payment Object

5. Webhook fires → Magento updates the order status

This is the complete flow for merchants not using NetSuite.

7. Optional: NetSuite ERP Reconciliation

For merchants using Paystand + NetSuite integration, Magento is part of a larger financial workflow.

Full ERP Flow

1. Customer checks out in Magento

2. Paystand processes payment

3. Webhook updates Magento order

4. Magento pushes order + payment to NetSuite

5. NetSuite:

   • Creates Sales Order

   • Applies Payment

   • Posts Deposit

API Used for Payment Application

POST https://api.paystand.com/v3/netsuites/apply-payment/public

Required fields include:

• Payment ID

• Invoice or Sales Order ID

• Amount

• Currency

• Customer identifiers

The NetSuite record must exist before a payment can be applied.

8. Troubleshooting & Common Misconfigurations
